"Outdoor pipe support is a 20-year decision made in a 20-minute installation window."

01

UV degradation

Ultraviolet radiation attacks polymer materials at the molecular level. Standard nylon, ABS, and polypropylene clamps will become brittle, discolor, and eventually crack under prolonged UV exposure. In high-UV environments — desert solar fields, coastal rooftops, southern US climates — this process can reduce a standard clamp's effective service life from decades to just a few years.

The solution is UV-stabilized materials. Glass-reinforced nylon with UV inhibitors retains mechanical properties through years of direct sun exposure, maintaining clamp force and structural integrity without becoming brittle.

02

Corrosion in outdoor environments

Outdoor installations rarely involve a controlled environment. Coastal proximity brings salt air. Industrial areas bring atmospheric sulfur and particulates. Even standard rainfall creates wet/dry cycling that accelerates corrosion on unprotected ferrous components.

Galvanized steel — the default in many strut and hardware specifications — loses its zinc coating over time, particularly at cut edges and fastener holes. Once the zinc is gone, rust follows quickly. Non-ferrous and non-metallic materials are the correct choice for outdoor pipe support in any environment where moisture and atmospheric contaminants are present.

03

Thermal cycling stress

Outdoor installations experience a far wider temperature range than indoor systems. A rooftop installation in a warm climate can see pipe surface temperatures above 150°F in direct summer sun, dropping to near-freezing on winter nights. This thermal cycling creates repeated expansion and contraction — which means clamps, straps, and fasteners are constantly working. A clamping methodology that allows controlled movement while maintaining support prevents the fatigue failures that rigid clamps accumulate over thousands of thermal cycles.

04

Solar applications: a special case

Photovoltaic installations typically involve interconnect conduit, wire management, and in some cases fluid piping for solar thermal or cooling systems. All of it runs outdoors, often in locations that are difficult to access for maintenance.

The support system for these runs needs to withstand UV exposure for the system's 20–25 year design life, resist corrosion without annual inspection or treatment, accommodate thermal movement without loosening or fatiguing, and install cleanly without tools — because rooftop work environments are constrained. A universal, non-corrosive, UV-rated clamp system directly addresses each of these requirements, and eliminates the need for multiple product SKUs across different pipe and conduit diameters.

Best practice for outdoor and solar pipe support

The Uniclamp position

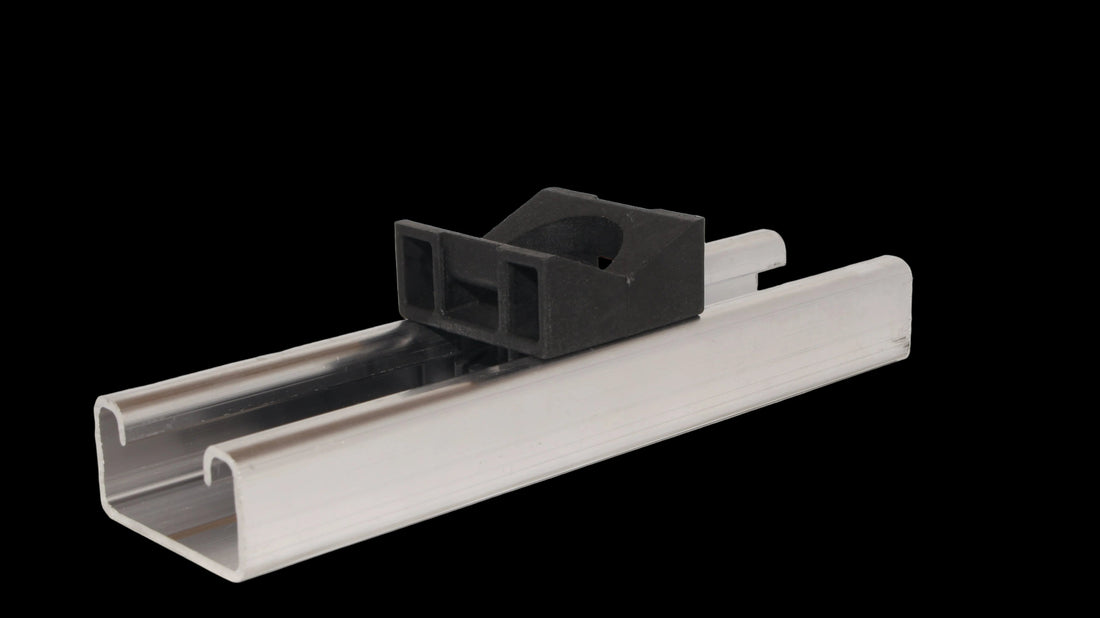

Uniclamp is constructed from glass-reinforced nylon — a material specifically selected for its mechanical strength, UV resistance, and immunity to galvanic corrosion. It installs tool-free on standard strut channel and handles pipe diameters from 5/16" to 5" without size-specific SKUs. For applications without strut — surface runs, panel supports, or equipment connections — the V-BAT™ provides the same material performance in a strap-based format. Neither product rusts. Neither becomes brittle. Neither requires a return visit in three years.

Frequently asked questions

What pipe clamp is best for outdoor and rooftop UV exposure?

A UV-stabilized, glass-reinforced nylon clamp. Standard nylon and polypropylene clamps go brittle and crack in direct sun within a few years; UV-inhibited material holds its clamp force and structural integrity for the life of the installation. See the UniClamp S for rooftop and solar-field runs.

Are these clamps suitable for solar line set and conduit runs?

Yes. One universal clamp handles interconnect conduit, wire management, and refrigerant or fluid line sets from 5/16" to 5", tool-free — ideal for constrained rooftop and PV work where minimizing SKUs and install time matters.

Will the clamp corrode in coastal or wet environments?

No. Glass-reinforced nylon is non-ferrous and non-corrosive, so there's no zinc coating to lose and no galvanic reaction with the pipe — even in salt air. For strut-free surface and panel runs, the V-BAT strap offers the same corrosion immunity.
