"Get the support right the first time. The consequence of getting it wrong is not a warranty claim — it's a safety incident."

01

Galvanic corrosion at the support interface

Gas and oil piping frequently involves carbon steel, black iron, and occasionally copper. When a galvanized or plain steel clamp contacts carbon steel pipe in a wet or chemically active environment, galvanic corrosion is initiated at the contact point. Over time, this creates localized pipe wall thinning — directly under the clamp, where it cannot be visually inspected. This failure mode is insidious because it is hidden, progressive, and located at a structural support point where pipe movement under pressure is least expected.

02

Vibration fatigue

Compressors, pumps, and high-flow gas lines generate continuous vibration. A rigid metal clamp that transmits this vibration to a structural member also transmits the reaction force back to the pipe — creating cyclic stress at the clamp contact points. Over thousands or millions of cycles, this can initiate fatigue cracking in the pipe wall. Non-conductive, slightly compliant clamps dampen this vibration transmission, reducing cyclic stress concentrations at the support point.

03

Thermal expansion in high-temperature lines

Steam-traced oil lines, heated fuel systems, and process gas lines all operate at elevated temperatures. As the pipe expands, any rigid clamp that prevents axial movement converts thermal growth into stress at the pipe wall. This stress is additive with operating pressure — pushing the system closer to its design limits. Proper support design allows guided axial movement while providing transverse and vertical restraint. The support is a guide, not a grip.

04

Coating and lining damage

Many gas and oil lines are externally coated for corrosion protection. A standard metal clamp abrades that coating at the contact point, creating a bare metal exposure in exactly the location where moisture can concentrate. The coating has been compromised in the one spot it matters most.

Best practice for gas & oil pipe support

The Uniclamp position

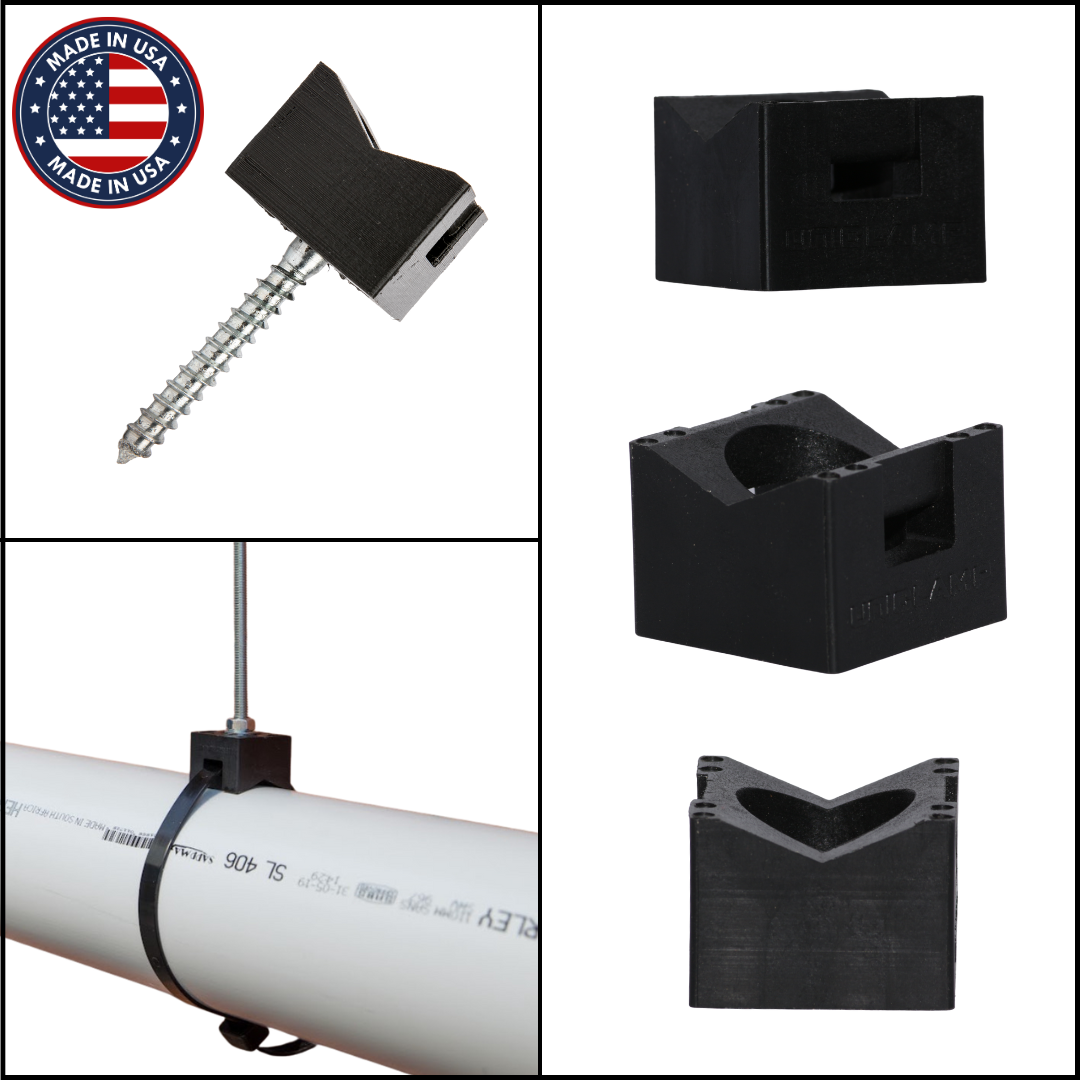

Uniclamp is constructed from glass-reinforced nylon — a material that has no galvanic reaction with carbon steel, black iron, copper, or stainless steel. It protects pipe coatings through smooth, continuous contact, dampens vibration rather than transmitting it, and accommodates thermal movement without gripping the pipe rigidly. It installs tool-free, without modification to the pipe or existing supports — no cutting, no welding, no torches near the line. For applications where strut channel is not available, the V-BAT™ extends these same material properties into a strap-based format, allowing consistent, non-corrosive support across the full range of gas and oil piping configurations.

Frequently asked questions

What pipe support avoids galvanic corrosion on carbon steel gas lines?

A non-reactive, glass-reinforced nylon support. It has no galvanic reaction with carbon steel, black iron, copper, or stainless, so there's no hidden pipe-wall thinning under the clamp — the failure mode that's invisible until it leaks. The UniClamp S is built for exactly this interface.

Do these clamps meet gas & oil pipe support requirements?

UniClamp supports the structural intent of ASME B31.3 and B31.8 — controlling sag and vibration while allowing guided thermal movement — and adds the material compatibility the code leaves to the specifier. Always confirm spacing and load against the governing code for your system.

Is there a non-corrosive option where there's no strut channel?

Yes. The V-BAT strap delivers the same non-reactive, glass-reinforced nylon performance in a strut-free format — for surface runs, equipment connections, and retrofits where there's nothing to bolt a clamp to.
