"A support system that's perfectly adequate for gravity load can still fail catastrophically under lateral force if it was never designed to resist it."

01

Two different jobs, one support system

Gravity support and seismic bracing are not the same requirement, even though the same hardware often has to do both jobs. Gravity support keeps a pipe, conduit run, or cable tray from sagging or falling straight down. Lateral bracing — trapeze assemblies, sway braces, seismic restraint — keeps that same system from swinging, shearing, or disconnecting when the structure itself moves.

California's Division of the State Architect issued a formal Interpretation of Regulations (IR 16-13) specifically to clarify this distinction for mechanical, electrical, and plumbing distribution systems, explicitly covering conduit, cable trays, raceways, duct systems, and piping. The fact that a dedicated interpretation was needed tells you how often this gets conflated or missed in the field — and the underlying engineering reality doesn't stop at a state line. Any facility in a seismic zone, and increasingly any facility where insurers and AHJs are scrutinizing MEP resilience more broadly, is exposed to the same gap.

A compliant lateral bracing system typically needs anchorage rated for both gravity and seismic loads (not gravity alone), bracing sized to the system's mass and expected lateral force at defined intervals, and documentation clear enough to satisfy structural plan check — not an assumption that “it's always been done this way.”

02

The clamp itself can be the failure mode

There's a second lateral-load problem that has nothing to do with earthquakes, and it shows up most on softer lines — copper being the clearest example. The instinct with a steel clamp is to compensate for movement by torquing down harder. On copper, that instinct causes the exact damage it's trying to prevent: the metal work-hardens at the contact band, then indents and locally deforms the pipe wall, creating a stress concentration where fatigue cracking under ongoing vibration is most likely to start.

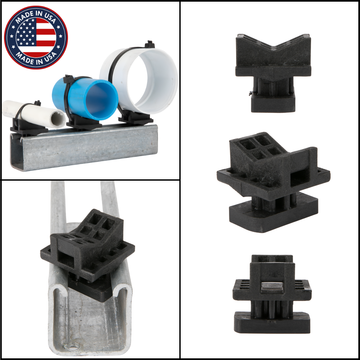

Uniclamp's GRP clamp body was engineered specifically around this problem. It distributes holding force across a broader, more forgiving contact surface instead of concentrating it at a thin steel edge, so there's no localized indentation on a copper or other soft-metal line. It absorbs harmonic vibration and water-hammer shock rather than transmitting it into a rigid metal-to-metal joint — which is also why systems held in Uniclamp GRP stay quiet. And because the clamp geometry holds securely at correct torque, there's no need to over-tighten to compensate for a joint that would otherwise work loose.

03

Independently tested, not just asserted

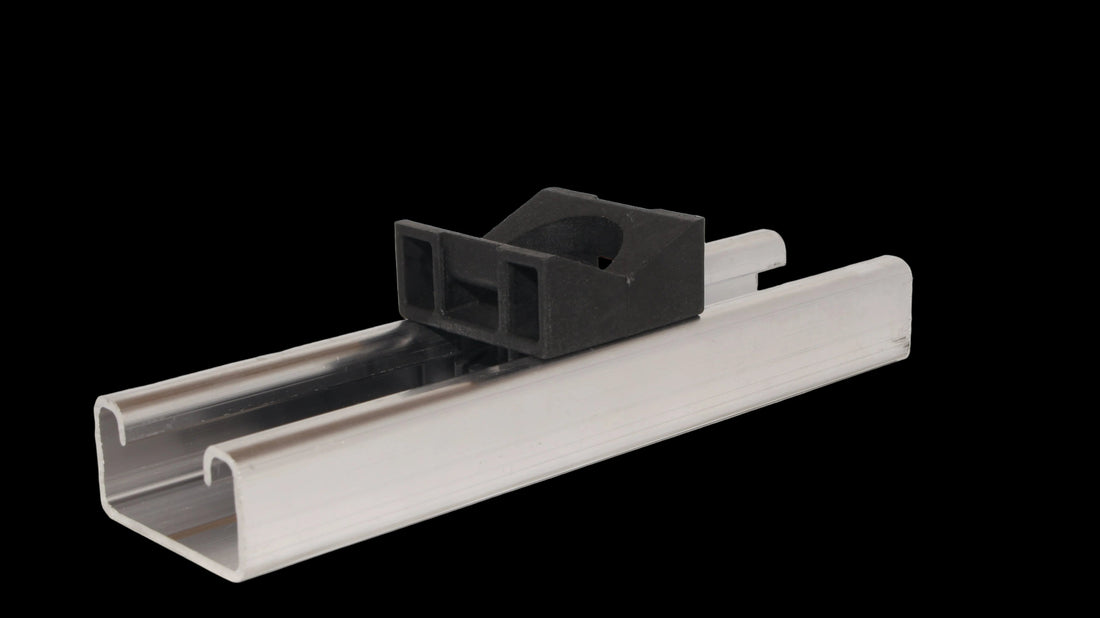

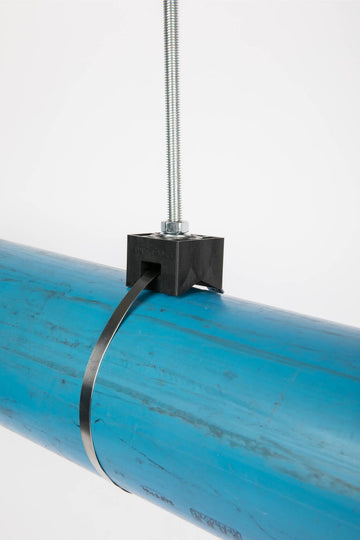

Lateral bracing performance lives or dies at the connection points — the clamps, brackets, and anchors tying the raceway or pipe to the brace and the brace to structure. V-BAT and StrutIQ are built to hold their rated capacity under multi-directional load, not just the straight-down case most installers default to when speccing support.

None of this is worth much as a claim on a datasheet — it needs to hold up under independent testing. Uniclamp hardware carries UL certification and has been through seismic testing by BRANZ in New Zealand, one of the most rigorous seismic testing regimes in the world given the country's earthquake exposure and correspondingly strict building code requirements. Specifying to a BRANZ-tested seismic performance standard is a meaningfully higher bar than relying on a manufacturer's internal load rating.

Best practice for specifying seismic-rated MEP support

The Uniclamp position

If your support spec only answers “how much weight does this hold,” you're answering half the question. The other half — what happens when the building moves, and what happens to the line itself under everyday vibration — is increasingly the one code officials, insurers, and independent test labs are asking first.

Frequently asked questions

Is a support system that passes gravity-load inspection automatically seismic compliant?

No. Gravity support and lateral bracing are different engineering requirements, which is exactly why California's Division of the State Architect issued IR 16-13 to clarify the distinction for MEP distribution systems. Hardware rated for straight-down load isn't automatically rated to resist swinging, shearing, or disconnecting under lateral force.

Why does a steel clamp risk damaging copper pipe under lateral movement?

Steel is harder than copper, so tightening a steel clamp to compensate for movement work-hardens and indents the softer pipe wall at the contact band. That deformed zone becomes a stress concentration where fatigue cracking is most likely to start under ongoing vibration — the clamp meant to protect the line becomes the reason it fails.

What does BRANZ seismic testing mean for MEP hardware outside New Zealand?

BRANZ is one of the most rigorous seismic testing regimes in the world, given New Zealand's earthquake exposure and building code requirements. Hardware proven to hold its rated capacity under multi-directional dynamic load to that standard is a meaningfully higher bar than an internal manufacturer rating, regardless of the project's own seismic zone.
