The silent failure in solar racking: why galvanic corrosion is the problem nobody specs for
Every solar project scrutinizes the module — efficiency ratings, degradation curves, warranty terms, all analyzed to the decimal point. The racking system holding that module up for the next 25 to 30 years, and the cable management carrying its output all the way to the inverter, rarely gets the same attention.
That's a mistake. The racking is the skeleton of the entire array, and the cable path is its nervous system. In a huge number of installations, both are quietly corroding apart from the inside, one anchor point at a time.
|
"A racking joint doesn't fail all at once — it corrodes invisibly for years until a wind event finds the weak point for you." |
|
01 |
The mechanism: two metals, one loserAluminum rail. Steel substructure. Stainless fasteners. Every rail-to-bracket connection in a typical racking system is a bimetallic joint — and wherever two dissimilar metals touch in the presence of moisture, one of them loses. The numbers are specific: an aluminum clamp paired with a standard A2/304 stainless fastener creates a potential difference of roughly 0.55–0.65V. The stainless becomes a large cathode; the aluminum at the contact point becomes a small anode — the worst possible ratio, accelerating corrosion exactly where structural and electrical integrity matter most. Switching to 316-grade stainless doesn't fix it either — 316's chloride resistance protects the steel side, not the aluminum on the other side of the joint. Left unmanaged, that corrosion progresses in stages: hole elongation lets the module clamp shift under load, corrosion byproducts can seize joints together so tight that removing a panel means damaging the rail, and in coastal or offshore-adjacent environments active galvanic attack can reduce a structural member's effective cross-section below its design load capacity. None of it shows up on a routine visual inspection. There's a fire-safety layer too — UL 2703 depends partly on stable electrical bonding at every clamp interface, and it's a system-level listing: mix in a different manufacturer's grounding clamps or rail and the listing is void, regardless of how good each individual part is. |
|
02 |

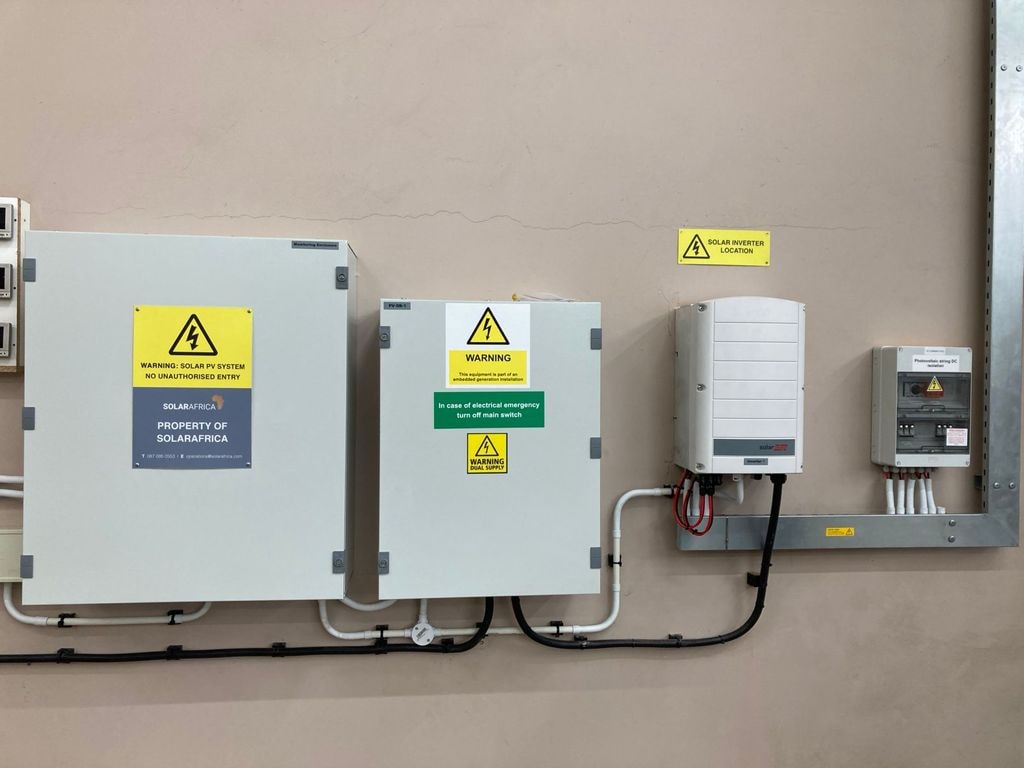

It's not just the rack — it's every anchor point along the circuitMost corrosion conversations stop at the rail-to-bracket joint and ignore everything downstream of it. But a solar installation isn't one bimetallic joint — it's dozens to hundreds of them, strung along the entire electrical path from panel to inverter to switchgear: module-level cable clips and grounding clamps sitting in full weather exposure, home-run cabling along the rail and roof runs, combiner box and DC disconnect transition clamps, inverter-to-switchgear AC conductor support, and every grounding and bonding clamp the fault-current path passes through. Treat racking as the only corrosion-critical zone and you've solved maybe a third of the problem. A system with StrutIQ-grade material discipline at the rail joint that reverts to generic conductive clips for the run from combiner box to inverter has just moved the failure point downstream — and because that run is a live current-carrying conductor, the failure mode there isn't just mechanical, it's a fault path. |
|
03 |

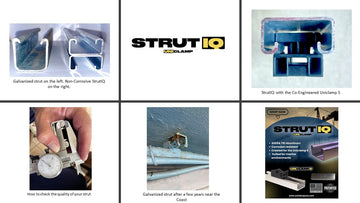

The fix isn't paint — it's isolation and material selectionField-applied anti-corrosion coatings are common band-aids, and they're often counterproductive: if the coating seeps into the clamping joint, it can destroy the electrical bonding path it was meant to protect. The real fix happens at the spec stage. This is exactly the problem StrutIQ was designed around. Aluminum strut paired with Uniclamp's non-corrosive clamp bodies eliminates the aluminum-steel-stainless triangle that causes the worst-case galvanic pairing in the first place — no isolating washers to forget, no field coating to seep into the joint, no mixed-manufacturer listing risk. V-BAT and Uniclamp S carry that same non-conductive, corrosion-isolated construction from the module-level cable clip all the way through to the inverter and switchgear connection — one material standard, applied at every anchor point from the panel to the inverter and beyond. |
Best practice for specifying corrosion-isolated solar racking
|
|
The Uniclamp position A solar module is engineered for 25–30 years. Make sure everything holding it up — and everything carrying its output — is engineered for the same lifespan, at every single anchor point along the way, not just the rail joint.
|
|
Frequently asked questions Does switching to 316 stainless fix galvanic corrosion in solar racking?No. 316's extra molybdenum content improves the stainless fastener's own chloride resistance, but it does nothing for the aluminum on the other side of the joint. The galvanic risk to the aluminum rail stays essentially the same — the fix has to isolate the dissimilar metals, not just upgrade one of them. Why does galvanic corrosion in solar racking matter for a UL 2703 listing?UL 2703 evaluates the module, rack, and roof deck together for a System Fire Class rating, and that rating depends partly on stable electrical bonding at every clamp interface. Corrosion at the grounding path threatens that bonding continuity, and because it's a system-level listing, mixing in a different manufacturer's grounding clamps or rail voids it regardless of how good each individual part is. Where in a solar installation should I be checking for galvanic corrosion beyond the racking?Every anchor point along the electrical path: module-level cable clips and grounding clamps, home-run cabling along the rail and roof runs, combiner box and DC disconnect transition clamps, inverter-to-switchgear AC conductor support, and grounding/bonding clamps end to end. |
Have a rooftop or ground-mount project in a coastal or high-corrosion-class environment? Talk to us about specifying Uniclamp across the full circuit — racking, cable management, and grounding — before the BOM is locked in. It's a lot cheaper to solve at the spec stage than at year eight.
