"The pipe clamp and strut system — installed without a second thought during mechanical rough-in — is the antenna transmitting vibration from the mechanical room to every floor in the building."

01

How vibration gets into the structure

HVAC systems generate vibration from multiple sources: compressor operation (reciprocating or rotary), refrigerant flow turbulence at expansion valves and elbows, variable-speed drive harmonics, water hammer in hydronic systems, and fan imbalance and blade passage frequency.

These vibrations travel outward from the source through the refrigerant or water in the pipe — and then into the pipe wall itself. From the pipe wall, energy transfers into whatever the pipe is touching: the clamp. From the clamp, into the strut. From the strut, into the structure. If each of those connections is metal-to-metal, the transmission efficiency is very high. The building becomes a resonating body, and occupants experience the vibration as noise — often with no clear localization to a source, because the energy has spread throughout the structure.

02

Why standard metal clamps make this worse

A standard two-piece galvanized pipe clamp in direct contact with both the pipe and the strut creates a nearly unobstructed vibration transmission path. The pipe is mechanically coupled to the structure with minimal isolation. The clamp was designed to hold the pipe. No one specified it to isolate vibration. So it doesn't. This is not a defect — it's a design characteristic. The problem is that it's the wrong design characteristic for this application.

03

The physics of vibration isolation

To reduce vibration transmission, you need to introduce an impedance mismatch in the transmission path. In practical terms, this means a material at the pipe-to-support interface that has lower stiffness than the pipe and structural member, has higher internal damping (converting vibration energy to heat rather than transmitting it), and makes contact over a distributed area rather than a point or line.

This is precisely what a non-metallic, glass-reinforced nylon clamp provides. The material is significantly less stiff than steel or galvanized iron, has meaningful internal damping, and distributes contact over the full curvature of the pipe — all of which reduce transmission compared to a metal clamp. The result is measurable noise reduction in the occupied space, without any change to the mechanical equipment itself.

04

Where it hits hardest: refrigerant line sets, chilled water, and hot water lines

Refrigerant line sets are particularly susceptible because the high-density refrigerant fluid couples compressor vibration efficiently into the pipe wall — non-metallic line set clamps at all support points along suction and discharge lines significantly reduce structure-borne noise in the occupied space. Chilled water systems carry pump-generated pulsation and pipe resonance as low-frequency vibration that travels long distances through rigid metallic support systems, particularly on long horizontal runs.

In condenser water and domestic hot water systems, turbulent flow and pump noise are best isolated at the point of first structural contact — the clamp. Treating the source is more effective than adding isolation afterward.

05

Noise complaints are expensive

In commercial and multifamily residential construction, HVAC noise complaints generate real costs: warranty callbacks and investigations, remediation work that often requires accessing finished ceilings, replacement of entire pipe support runs, and tenant disputes and lease concessions in severe cases.

None of this is covered by the equipment warranty — because the equipment is functioning correctly. The liability falls on the mechanical contractor and, ultimately, on the specification decisions made during rough-in. Avoiding this cost is straightforward: specify non-conductive clamps during design, not after the complaints start.

Best practice for HVAC vibration isolation at pipe supports

The Uniclamp position

Uniclamp provides inherent vibration isolation through its material selection — glass-reinforced nylon, which introduces the impedance mismatch needed to interrupt vibration transmission at the pipe-to-structure interface. No additional isolation pads, grommets, or inertia bases are required at the clamp itself. The isolation is built in. For insulated refrigerant lines, the HDPE sleeve prevents insulation compression at the support point — maintaining both thermal performance and the additional isolation contribution of the insulation layer itself.

Frequently asked questions

What kind of pipe clamp reduces HVAC vibration and noise?

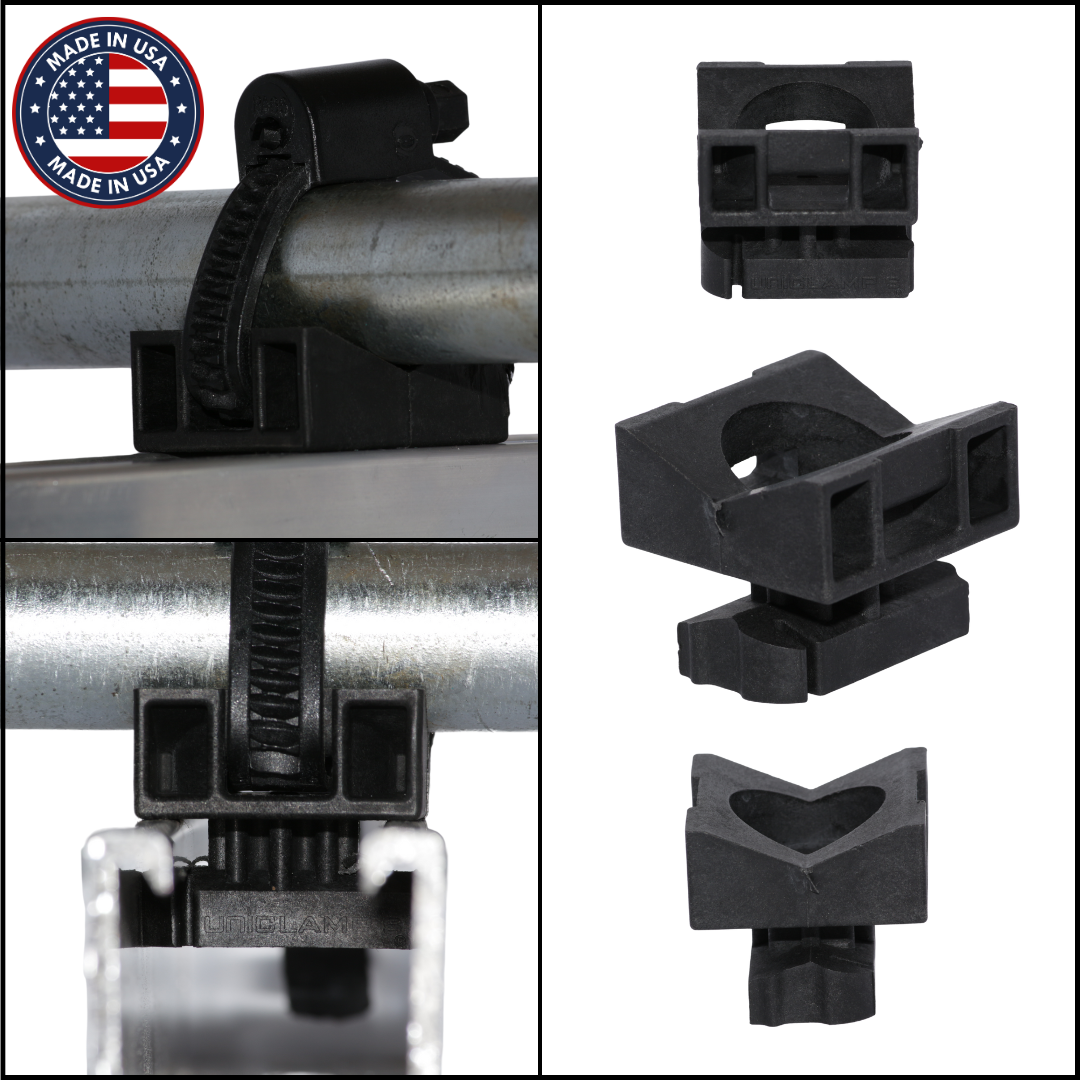

A non-conductive, glass-reinforced nylon clamp. Because it's less stiff than steel and has internal damping, it creates an impedance mismatch at the pipe-to-structure interface that interrupts vibration before it reaches the building. The UniClamp S strut pipe clamp is purpose-built for this on high-vibration lines.

Can the same clamp be used on refrigerant line sets and chilled water lines?

Yes. UniClamp's universal sizing spans 5/16" to 5", so one line set clamp covers suction, discharge, chilled water, and condenser water runs — which also removes the size-specific SKUs that cause specification errors on site.

Do I still need rubber isolators or inertia bases with a non-metallic clamp?

No. The isolation is built into the clamp material itself, so no add-on pads, grommets, or inertia bases are required at the support point. For insulated lines, pair it with the HDPE sleeve to avoid compressing the insulation.
